Transmission Electron Microscopy

The transmission electron microscopy is a widely used technique for the microstructural and chemical characterization at micro and nanoscales, providing two-dimensional images of the sample texture and shape as well as grain and/or particle size, degree of homogeneity at the microscopic scale, degree of crystallinity of the sample, identification of crystalline phases, and high resolution images to identify the crystalline domains. The microscope is equipped with an EDX analyzer for compositional analysis. It can be applied to all type of materials and research topics in materials science and technology working with electron-transparent samples prepared ad-hoc for this end. The service performs transmission electron microscopy: Imaging in bright and dark field, selected area electron diffraction and high resolution electron microscopy, as well as elemental analysis of selected areas. It does not provide STEM mode.

Available Equipment

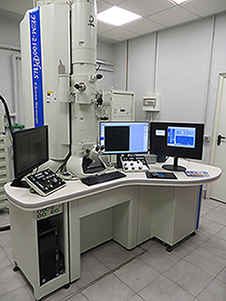

• JEOL 2100Plus microscope (200kV) with LaB6 filament. Structural resolution of 0.14 nm between lines and 0.23 nm between points. Sample holders with one and two angles. An X-ray Energy Dispersive Analyzer (EDX X-Max 80T, Oxford Instruments) and a CCD camera (Gatan) for image registration are attached to the equipment.
• Additional equipment in the “electron microscopy samples preparation laboratory”
